ประเภท:

Connectors Substation

วัสดุ:

Aluminium Bolt type

คำอธิบาย

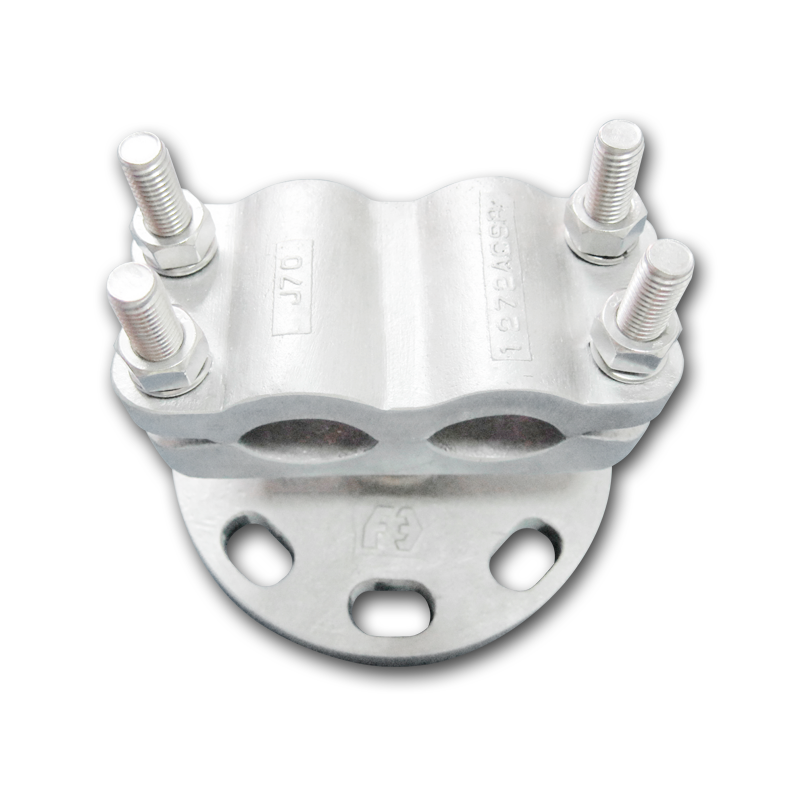

F3-6123 - AL. BUS SUPPORT CLAMP FOR 2x240 SQ.MM. TO 3" BC.

F3-6117 - AL. BUS SUPPORT CLAMP FOR 1x400 SQ.MM. TO 3" BC.

F3-6117-2 - AL. BUS SUPPORT CLAMP FOR 2x185-240 SQ.MM. TO 3" BC.

F3-6117-1 - AL. BUS SUPPORT CLAMP FOR 2x240-400 SQ.MM. TO 3" BC.

F3-6118-1 - AL. BUS SUPPORT CLAMP FOR 2x400 SQ.MM. TO 5" BC.

F3-6118-3 - AL. BUS SUPPORT CLAMP FOR 2x240-400 SQ.MM. TO 5" BC.

F3-6118-4 - AL. BUS SUPPORT CLAMP FOR 2x185-240 SQ.MM. TO 5" BC.

F3-6129 - AL. BUS SUPPORT CLAMP FOR 2x1272 MCM ACSR. TO 5" BC.

F3-6118-2 - AL. BUS SUPPORT CLAMP FOR 2x400 SQ.MM. TO 5" BC. SPACING 200 MM.
